MODEL GP25

Piston DP Gauge

Product Specification

  • Sensing Element : Piston
  • Max Line Pressure : 400 bar / 5800 psi
  • Min DP range : 0-0.3 bar / 0-4.5 psi
  • Max DP range : 0-10 bar / 0-145 psi
  • Accuracy : ± 2% of FSD
  • Scale starts from : 10% of FSD
  • Temperature : 0ºc to +80ºc (32ºF to 176ºF)
  • Porting CD : 54.0 mm
  • Port orientation : Axial, Bottom, Rear
  • Port size : 1/4’’ NPTF / BSPF (Other porting available as per requirement)
  • Gauge Options :

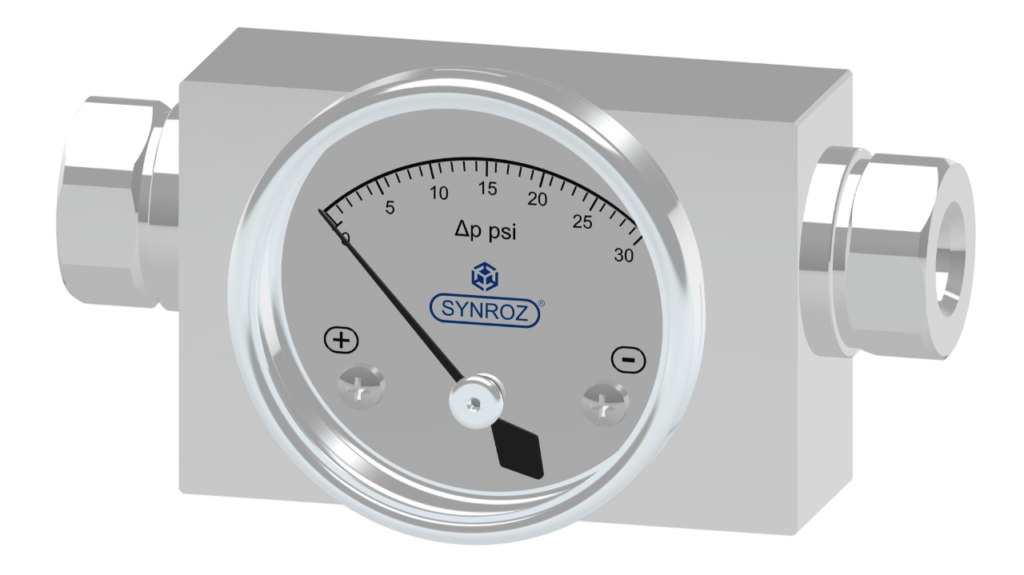

    1. Analog

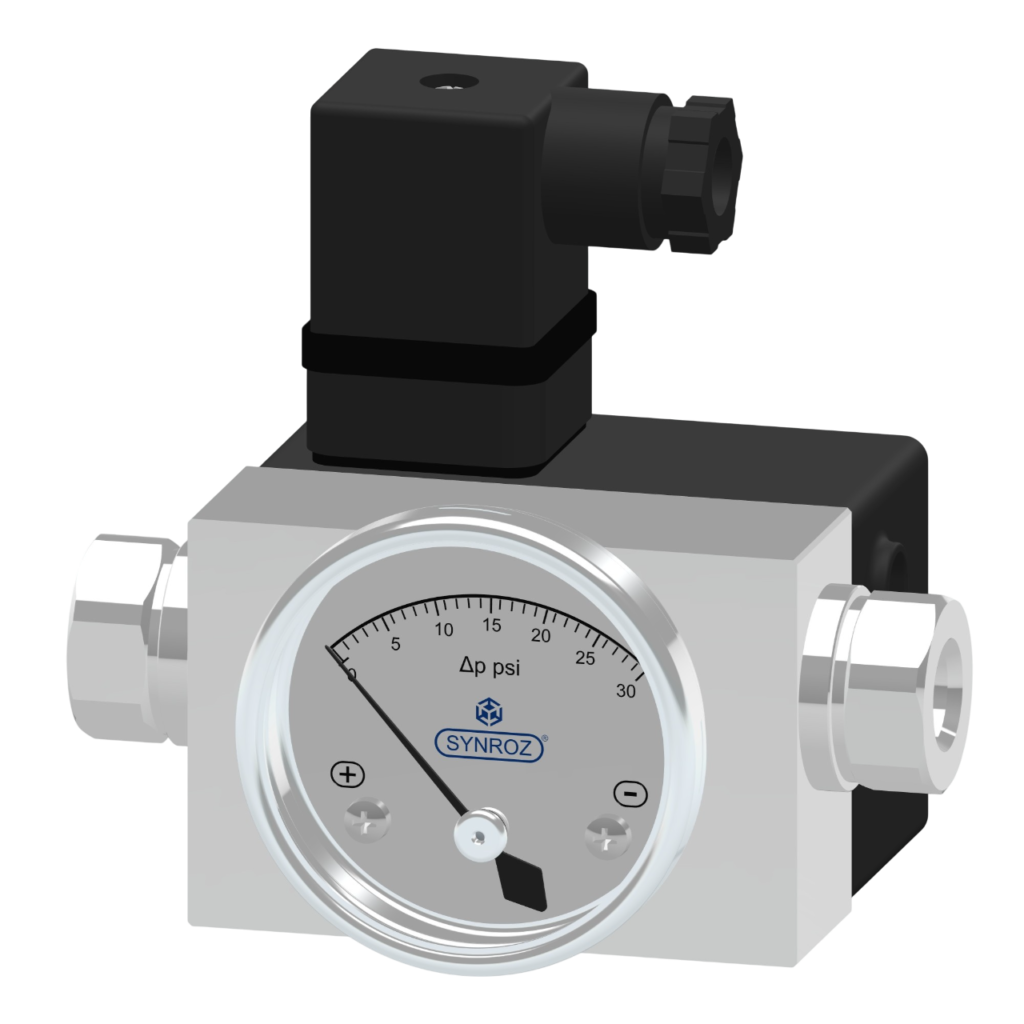

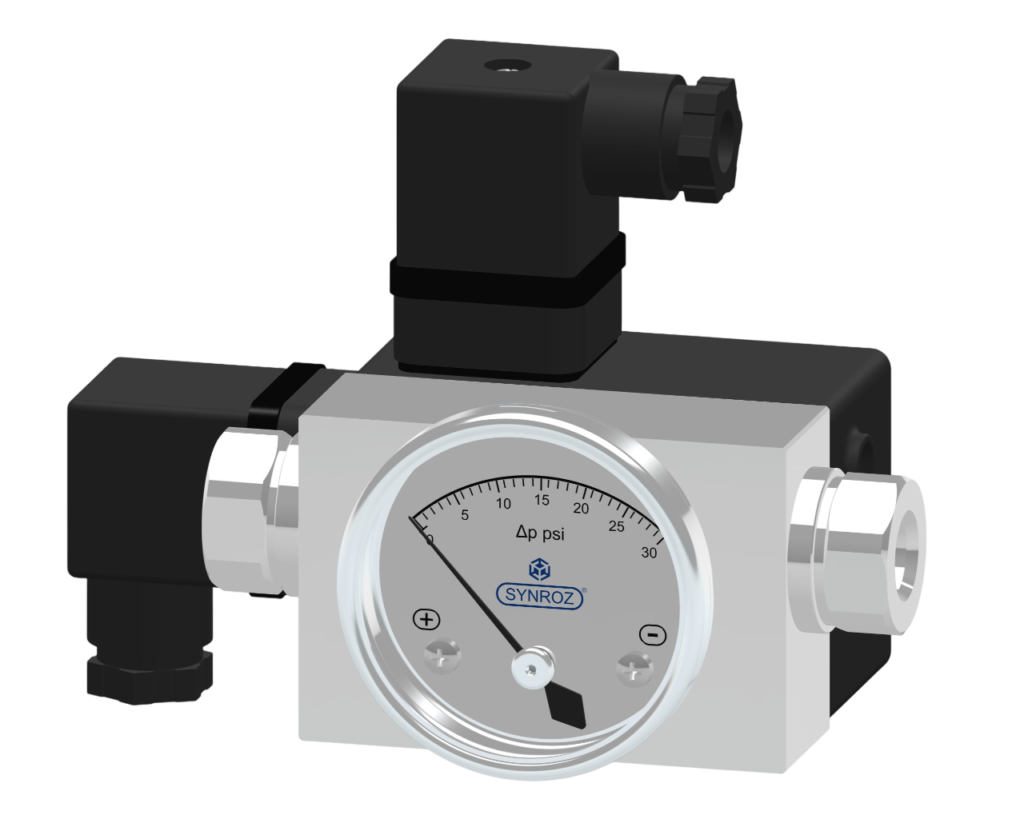

    2. Analog+Contact switch
    3. Contact switch
Technical data sheet
Product Coding

Case

  • Bayonet case
    Small : 2.0’’, 2.5’’
    Large : 4.0’’, 4.5’’, 6.0’
  • Push fit case
    Small : 2.0’’, 2.5’’
    Large : 4.0’’, 4.5’’, 6.0’’

Additional Features

  • Customised dial with customer logo
  • Bidirectional scale
  • Liquid filled case

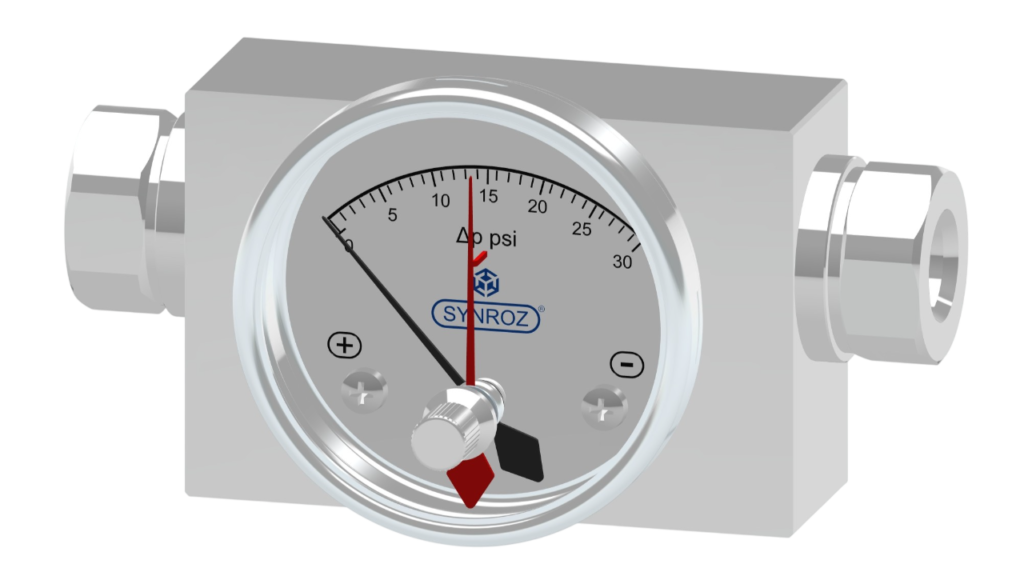

  • Max pointer
  • Centred zero scale
  • Dual dial
  • Color band scale

Wetted Material

  • Body & End-plug : Aluminium / Brass / SS 316L
  • Piston : SS 316L
  • Spring : SS302 / SS 316L optional
  • Magnet : Ceramic
  • Diaphragm & Seal : Buna-N, EPDM, Viton®, Teflon

Mounting

  • Direct mounting

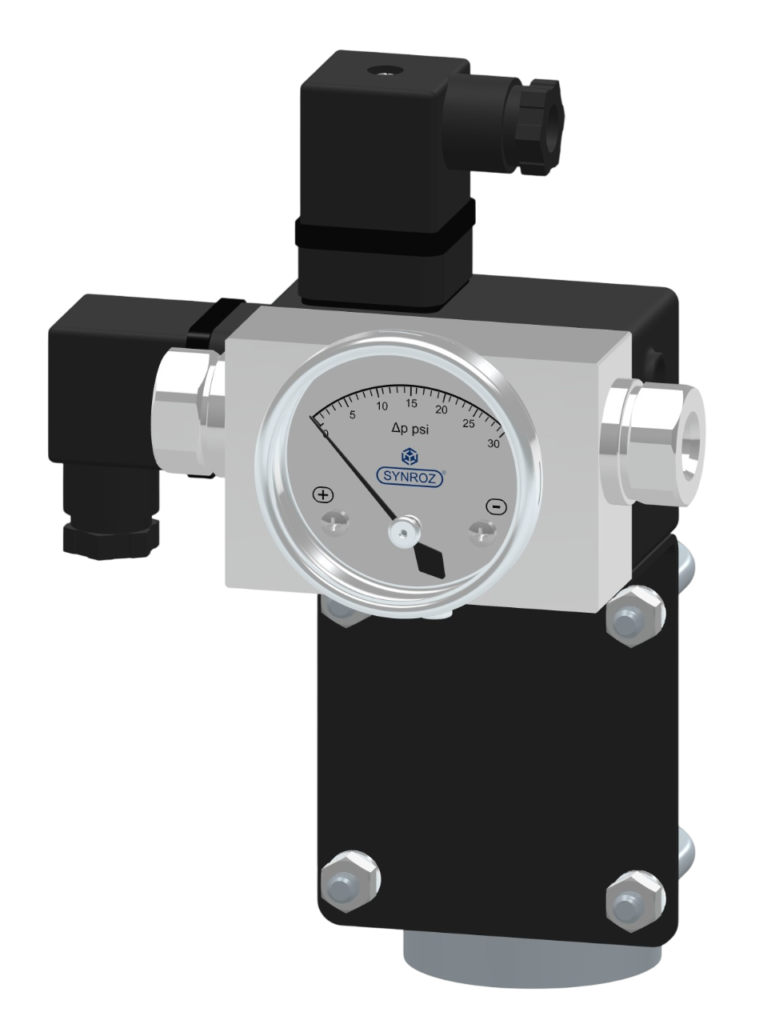

  • Front flange mounting

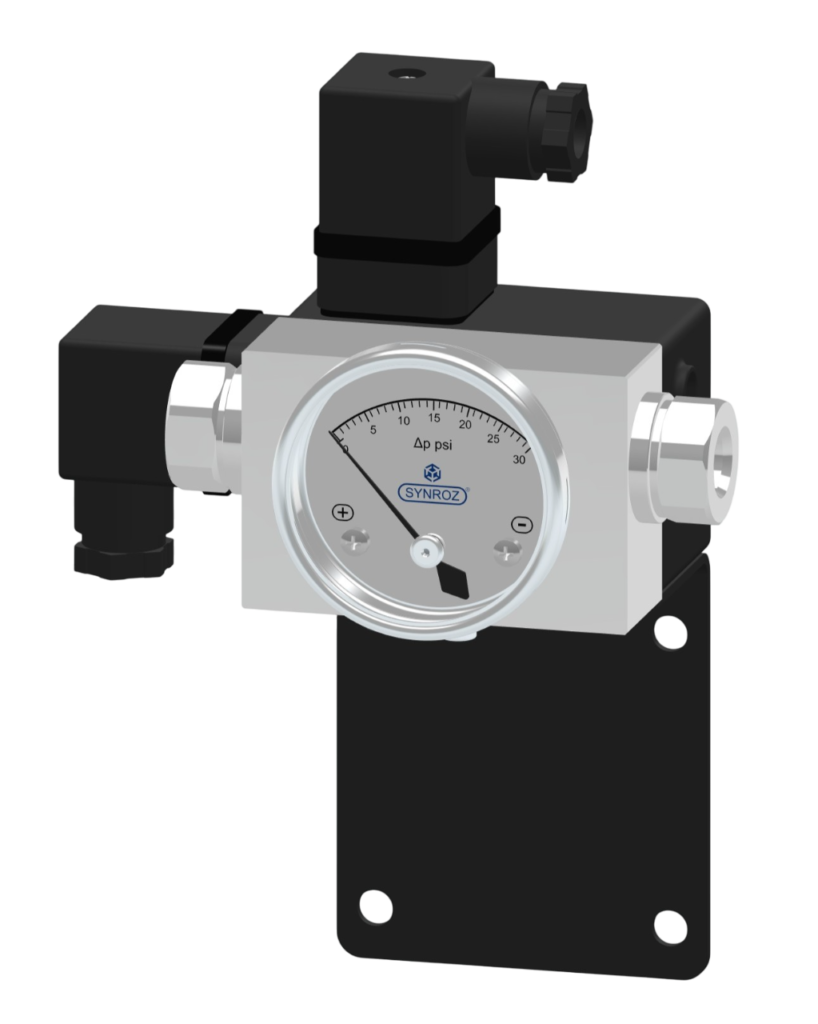

  • Surface mounting

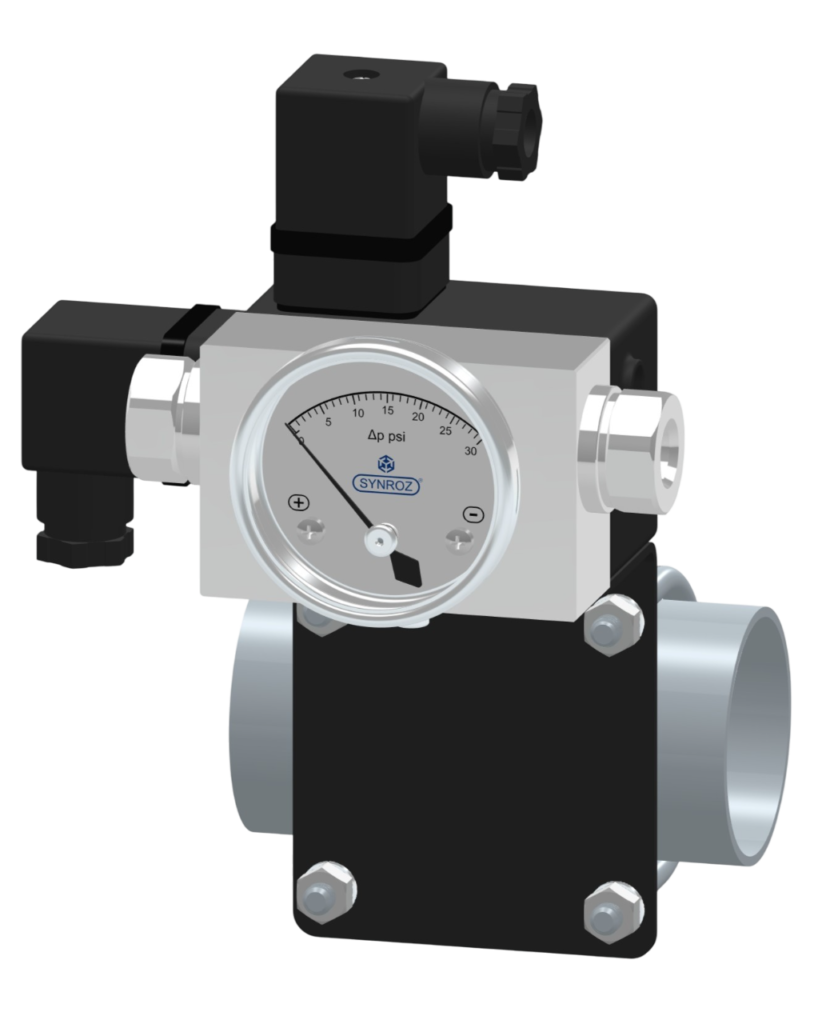

  • 2.0’’ Pipe mounting

Reed Contact Switch

  • SPDT : 3W, 0.25 Amp, 124 VAC / VDC
  • SPDT : 60W, 1.0 Amp, 240 VAC / VDC
  • SPST : 25W, 0.5 Amp, 230 VAC / VDC
  • SPST : 60W, 3.0 Amp, 240 VAC / VDC

Glass

  • Standard glass
  • Acrylic glass
  • Safety glass
  • Toughened glass
