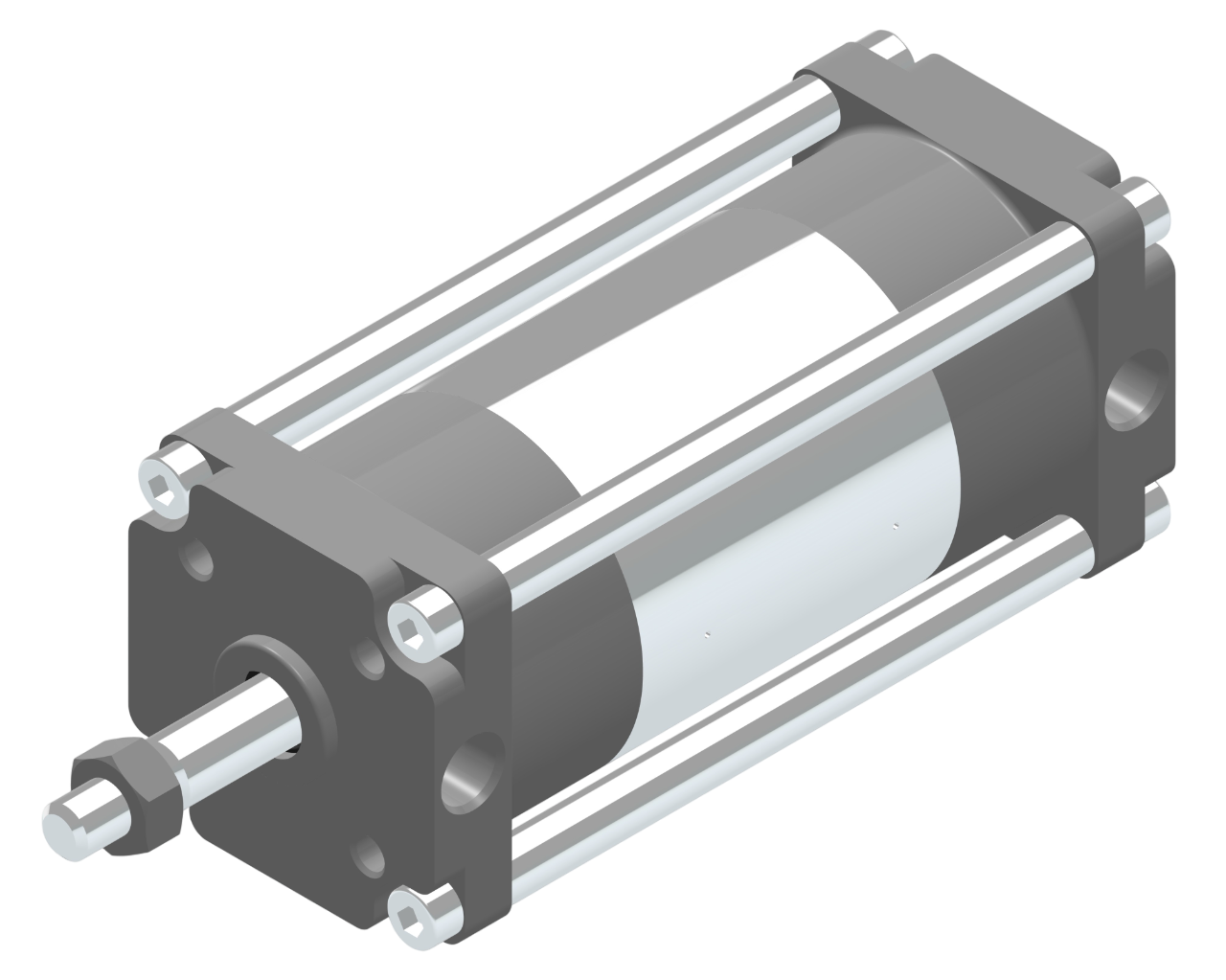

MODEL M40

Precision Diaphragm Cylinder

Product Specification

  • Actuation type : Single Acting / Double Acting
  • Stroke : 5 to 50 mm
  • Cylinder Diameter : 40 mm
  • Allowable pressure : 0.015 to 0.7 Mpa
  • Temperature : 0ºc to +80ºc (32ºF to 176ºF)
  • Bearing : Air Bearing / Brass bushing / Linear ball bearing
  • Spring : SS 302
  • Seal / Diaphragm : NBR with fabric
  • Mounting : Universal / Front flange / Back flange / Clevis stud / Trunnion mounting
Technical data sheet
Product Coding

Case

  • Bayonet case
    Small : 2.0’’, 2.5’’
    Large : 4.0’’, 4.5’’, 6.0’
  • Push fit case
    Small : 2.0’’, 2.5’’
    Large : 4.0’’, 4.5’’, 6.0’’

Additional Features

  • Customised dial with customer logo
  • Dual scale
  • Liquid filled case
  • Max pointer
  • Dual dial
  • Color band scale

Wetted Material

  • Body & End-plug : Aluminium / Brass / SS 316L
  • Piston : SS 316L
  • Spring : SS302 / SS 316L optional
  • Magnet : Ceramic
  • Diaphragm & Seal : Buna-N, EPDM, Viton®, Teflon

Mounting

  • Direct mounting
  • Front flange mounting
  • Surface mounting
  • 2.0’’ Pipe mounting

Reed Contact Switch

  • SPDT : 3W, 0.25 Amp, 124 VAC / VDC
  • SPDT : 60W, 1.0 Amp, 240 VAC / VDC
  • SPST : 25W, 0.5 Amp, 230 VAC / VDC
  • SPST : 60W, 3.0 Amp, 240 VAC / VDC

Glass

  • Standard glass
  • Acrylic glass
  • Safety glass
  • Toughened glass
